No. 64 Evaluation of in vitro skin absorption of δTocotrienol-γ-Cyclodextrin Complex

Background

Our company have attractive technologies in functional food and personal care fields which raise the water solubility, stability and bioavailability of a functional ingredient by using the inclusion property of cyclodextrin (CD).

We focused "Tocotrienols" as a notable anti-aging ingredient and "δ-tocotrienol" as the most powerful antioxidant among tocotrienols. A new Tocotrienol-γ-CD complex (δT3-γ-CD) containing very high amount of δT3 also has been developed (* please refer to the newest result of research "56th" of our homepage for details.).

In this report, skin absorption property of δT3-γ-CD was evaluated for use as one of key functional cosmetics materials.

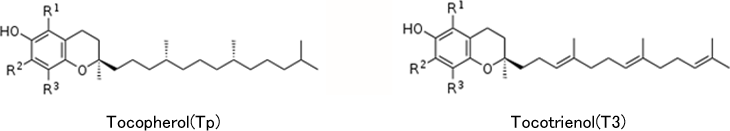

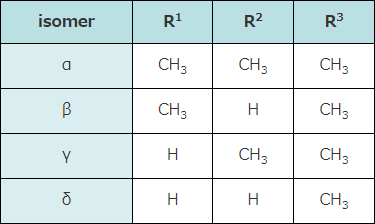

Structures of tocopherols and tocotrienols

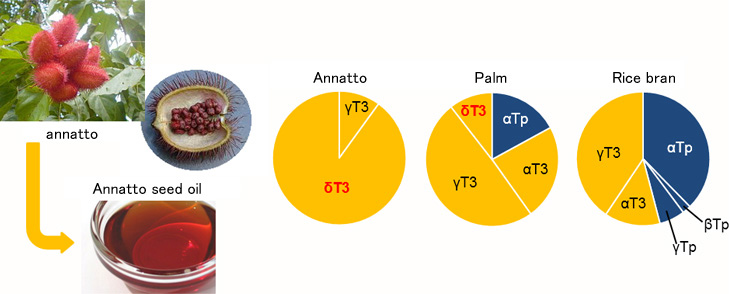

Annatto seed oil

Extracted oil from annatto seed, it has the highest concentration of δ-tocotrienol, and is naturally tocopherol-free (Tocopherol interferes with tocotrienol benefits.).
Recently, we developed δ-tocotrienol-γ-CD complex powder "δT3-γ-CD" by using of annatto seed oil.

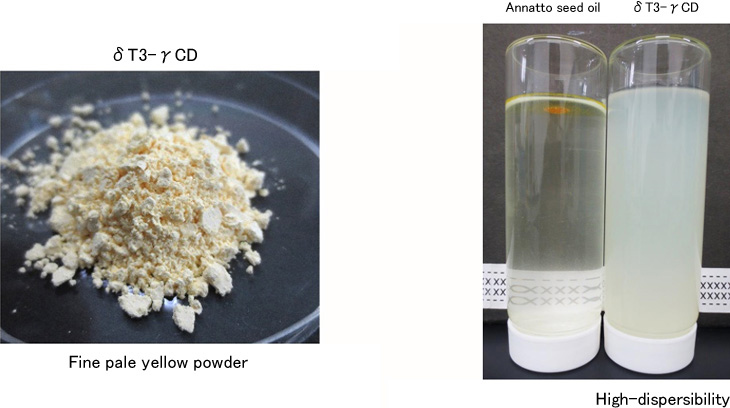

δTocotrienol-γCyclodextrin complex (δT3-γ-CD)

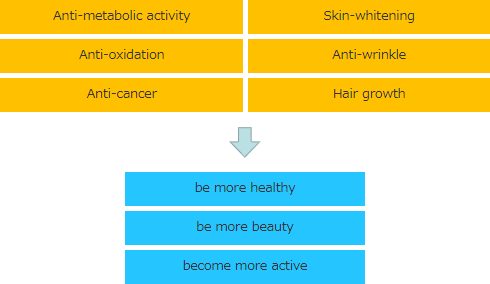

Appeal points of tocotrienol

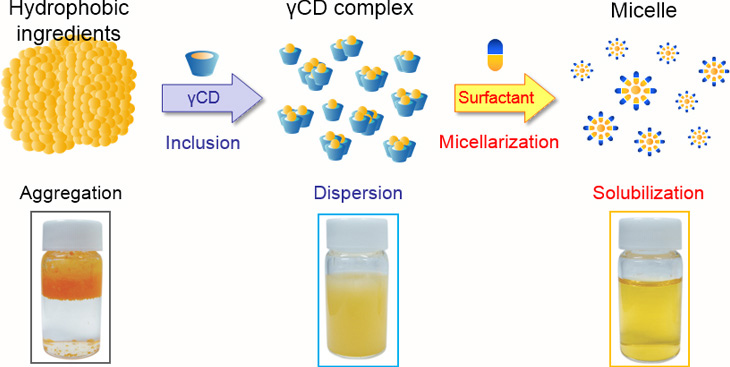

Combination of γ-CD inclusion and surfactant assisting effective solubilization of hydrophobic ingredients

Recently, we found that γ-CD inclusion complex of hydrophobic ingredients such as CoQ10 and curcumin could easily solubilize with some kind of surfactant by incorporating into micelle. The solubilized hydrophobic ingredients have high bioavailability and can be applied in functional food and personal care fields (* please refer to the newest result of research "25th", "32th" and "52th" of our homepage for details.).

Combination of γ-CD inclusion and surfactant assisting effective solubilization of hydrophobic ingredients

→ In this study, water solubility and skin absorption property of δT3-γ-CD were explored by using of solubilization technique in combination with surfactant.

Solubilization of δT3-γ-CD with GZK2

Dipotassium glycyrrhizate (GZK2) is used as a cosmetic ingredient. Therefore, the solubility change of δT3 was explored when GZK2 was added to δT3-γ-CD dispersed aqueous solution for enhancement of skin absorption of δT3.

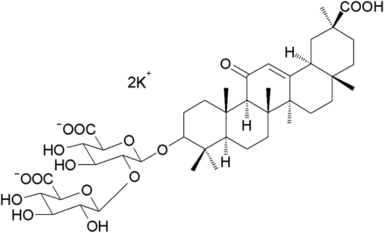

Structure of GZK2

Experiment 1. Solubilization of δT3-γ-CD with GZK2

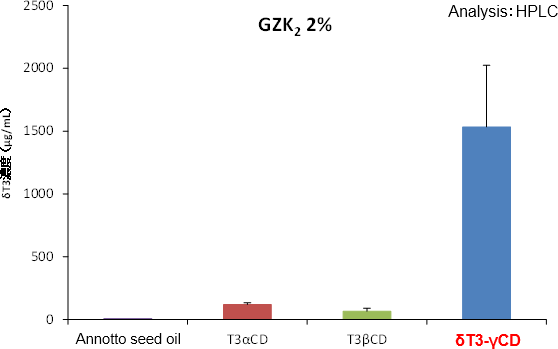

Result Fig. 1

The most effective solubilization was observed in the case of δT3-γ-CD by GZK2.

Experiment 2. Skin absorption of δT3-γ-CD with GZK2

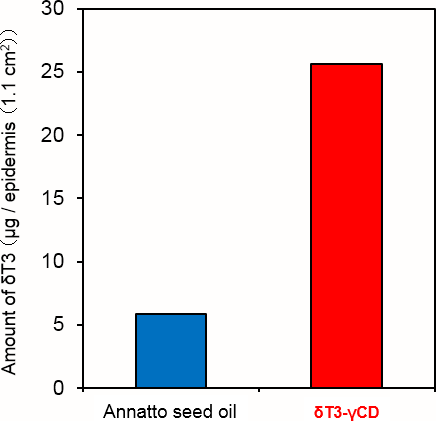

Result Fig. 2

Large amount of δT3 was observed from epidermal cells in the case of δT3-γ-CD.

Conclusion

Effective solubilization and skin absorption of δT3 of δT3-γ-CD were observed by using of our solubilization technique using surfactant (GZK2).

→ δT3-γ-CD can be useful for the developments of functional cosmetic products with effective skin absorption.
